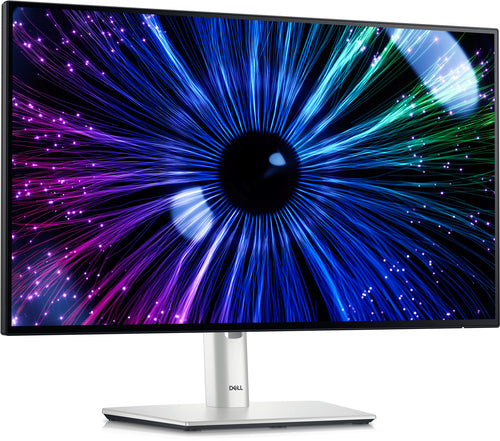

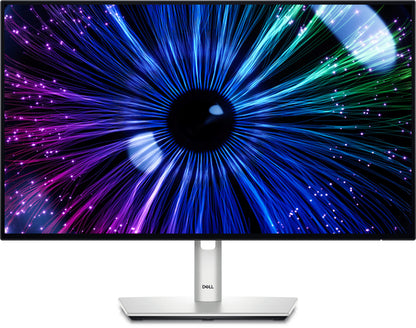

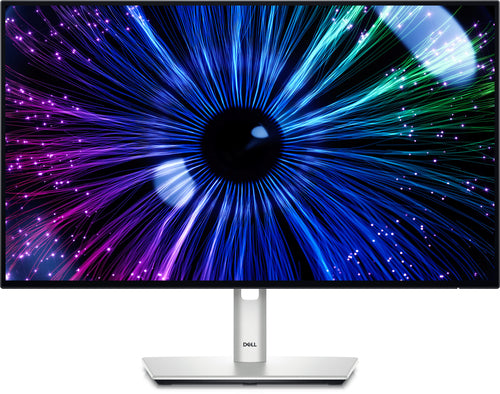

Dell UltraSharp 24 USB-C®Hub

Experience improved visual comfort, peak productivity and extensive connectivity with this hub monitor certified by TÜV for 4-star eye comfort.

Technical Information

• Diagonal Viewing Size: 23.8"

• Display Area (H × V): 527.04 mm × 296.46 mm (20.75" × 11.67")

• Total Display Area: 156,246.27 mm² (242.15 in²)

• Panel Type: IPS

• Screen Coating: Anti-glare with 3H hardness

• Maximum Resolution: Full HD (1920 × 1080) at 120 Hz

• Viewing Angle: 178° (Vertical) / 178° (Horizontal)

• Pixel Pitch: 0.2745 mm × 0.2745 mm

• Pixel Density (PPI): 92.53

• Contrast Ratio: 1000:1 (typical)

• Aspect Ratio: 16:9

• Backlight Technology: LED Edgelight System

• Brightness: 250 cd/m² (typical)

• Response Time: 8 ms (Normal) / 5 ms (Fast)

• HDR Ready: No

• Ambient Light Sensor: Yes (Auto brightness & color temperature adjustment)

• Color Support: 16.7 Million Colors

• Color Gamut: 100% sRGB, 100% BT.709, 85% DCI-P3, Delta E < 2 (average)

Interfaces / Ports

• 1 × DisplayPort 1.4 (DRR for Microsoft Windows, HDCP 1.4, up to FHD 120 Hz)

• 1 × HDMI (HDCP 1.4, up to FHD 120 Hz TMDS)

• 1 × DisplayPort 1.4 (Out) with MST (HDCP 1.4)

• 1 × USB Type-C (Upstream – Video + Data, DP 1.4 Alt Mode, PD up to 90 W)

• 1 × USB Type-C (Upstream – Data Only, 10 Gbps USB 3.2 Gen 2)

• 3 × USB Type-A (Downstream, SuperSpeed 10 Gbps USB 3.2 Gen 2)

• 1 × Audio Line-Out

• 1 × RJ-45 Ethernet (2.5 GbE)

• Quick Access Ports:

  • 1 × USB Type-C (Downstream, 10 Gbps USB 3.2 Gen 2, 15 W charging)

  • 1 × USB Type-A (Downstream, 10 Gbps USB 3.2 Gen 2, BC 1.2 charging)

Adjustability

• Height Adjustment: 150 mm (5.9")

• Tilt: -5° / +21°

• Swivel: -45° / +45°

• Pivot: -90° / +90°

• Adjustable Features: Height, Tilt, Swivel, Pivot

• PbP / PiP: No

• KVM Switch: Yes

• Daisy Chain: Yes

Audio

• Built-in Speaker: No

• Audio Output: 1 × Audio Line-Out

Security

• Security lock slot (cable lock sold separately)

• Anti-theft stand lock slot (to lock stand to monitor using screw)

Compliance & Certifications

• ENERGY STAR Certified Monitor

• EPEAT Registered (where applicable)

• RoHS Compliant

• TCO Certified & TCO Certified Edge

• BFR / PVC Free Monitor (excluding external cables)

• Arsenic-Free Glass & Mercury-Free Panel

Mounting & Dimensions

• VESA Mount: 100 × 100 mm (behind attached VESA cover)

• Dimensions (with Stand): 21.21" W × 7.16" D × 14.33"–19.55" H

• Dimensions (without Stand): 21.21" W × 1.93" D × 12.25" H

• Weight (Panel Only): 8.77 lb

• Weight (with Stand and Cables): 13.03 lb

• Weight (with Packaging): 18.62 lb

What's Included

• Monitor

• Stand Riser & Base

• Quick Setup Guide

• Safety, Environmental & Regulatory Information

• Factory Calibration Report

Included Cables

• Power Cable

• DisplayPort 1.4 Cable (1.8 m)

• USB Type-C ↔ Type-C Gen 2 Cable (1 m)

• USB Type-A ↔ Type-C Gen 2 Cable (1 m)

Power

• Voltage Required: 100–240 VAC / 50 Hz or 60 Hz ±3 Hz / 2.2 A (typical)

• Power Consumption:

  • On Mode: 14.5 W

  • Max: 210 W

  • Standby: 0.5 W

  • Off Mode: 0.3 W

  • Networked Standby: 1.5 W

Dell Display Manager

• Compatible with Easy Arrange and Other Key Features

Environmental Conditions

• Operating Temp: 0°C – 40°C (32°F – 104°F)

• Non-Operating Temp: -20°C – 60°C (-4°F – 140°F)

• Operating Humidity: 10% – 80% (Non-Condensing)

• Non-Operating Humidity: 5% – 90% (Non-Condensing)

• Operating Altitude: Up to 5000 m (16,404 ft)

• Non-Operating Altitude: Up to 12,192 m (40,000 ft)



Brand: Dell
