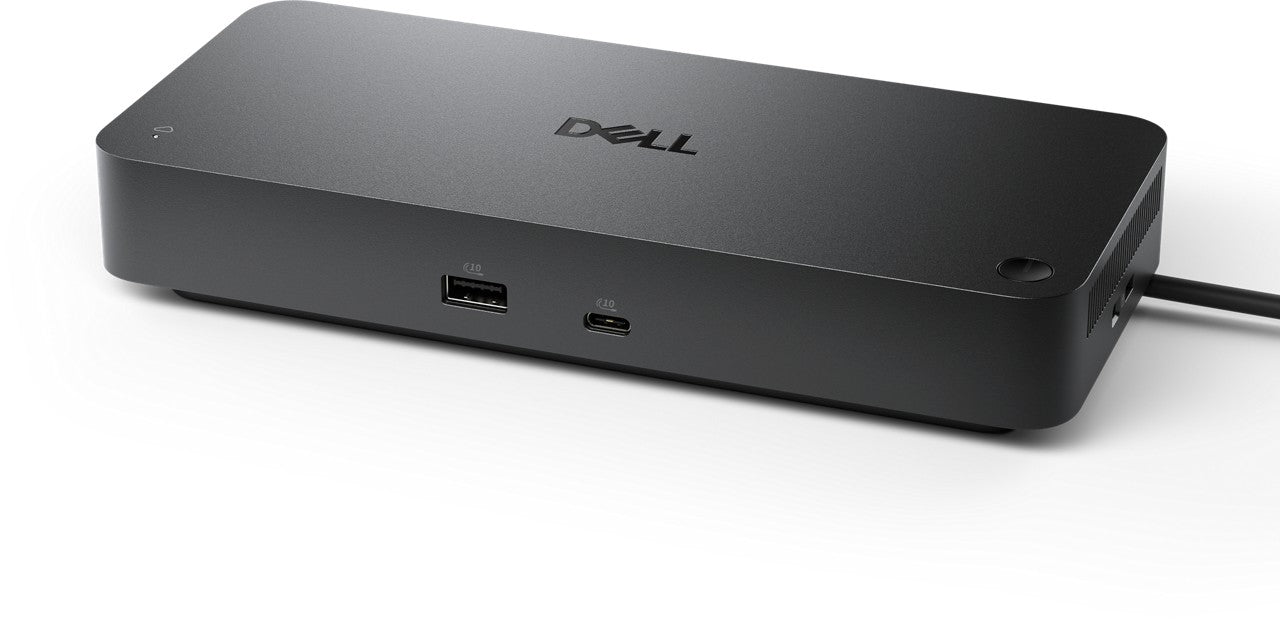

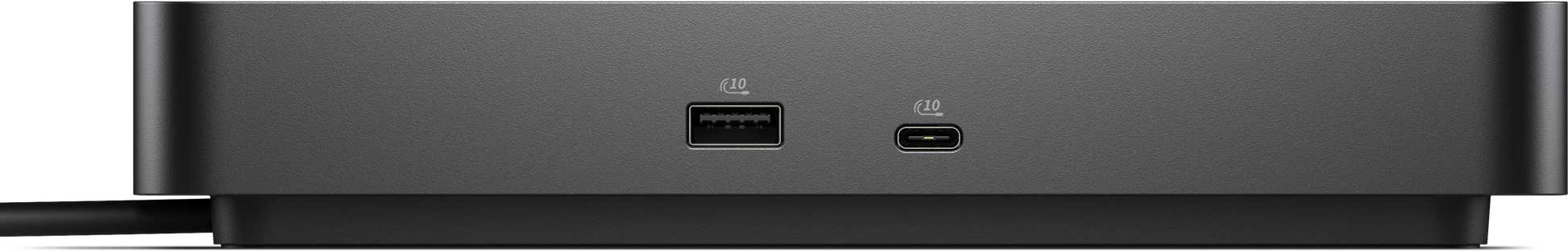

Dell Pro Thunderbolt 4 Smart Dock

Dell Pro Thunderbolt 4 Smart Dock

$448.68 MSRP
$448.68 $448.68 MSRP
Sale Sold out
Login for pricing

Description

Take on intensive workloads with the latest Thunderbolt 4 smart dock delivering up to 130W of power and remote management capabilities.

Tech Specs

  • Connectivity Technology
    • Wired
  • Number of Displays Supported
    • 4
  • Management Features
    • Host PC Management
      • Intel AMT over Thunderbolt with select Intel vPro PCs
      • MAC address pass-through
      • PXE Boot
      • Dock Power Button Sync
      • Wake-On-LAN
      • WLAN to LAN switch
      • Kernel Direct Memory Access (DMA) protection
    • Dock Management Features
      • Remote Firmware updates without a PC
      • Host-based firmware updates
      • Firmware update on disconnect
      • Port Disability independent of PC
  • Device Supported
    • Notebook

Video Resolution

DP1.4 / DP2.1 with Display Stream Compression
Up to:
  • 4 x 4K (3840x2160) @ 60Hz
  • 3 x 4K (3840x2160) @ 60Hz
  • 2 x 6K (6144 x 3456) @ 60Hz
  • 1 x 8K (7680 x 4320) @ 60Hz
DP1.4 without Display Stream Compression
Up to:
  • 4 x QHD (2560x1440) @ 60Hz
  • 3 x WQHD (3440 x 1440) @ 60Hz
  • 2 x 4K (3840x2160) @ 60Hz
  • 1 x 5K WUHD (5120 x 2160) @ 60Hz

Network & Communication

  • Ethernet Technology
  • RJ45 Ethernet port, 2.5GbE

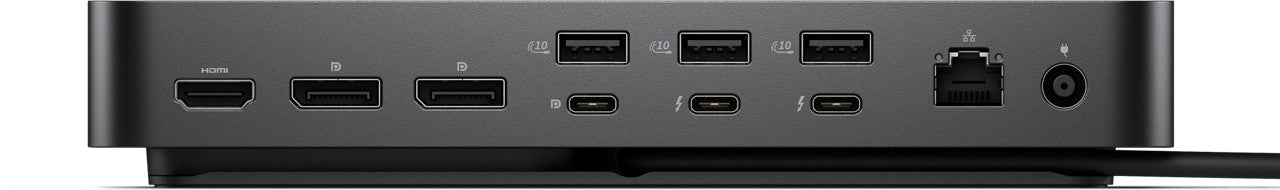

Interfaces/Ports

Interfaces
Video interfaces
  • 2 x DP1.4
  • 1 x HDMI 2.1
  • 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4
  • 2 x Thunderbolt 4
USB Ports (Data Only)
  • 4 x USB-A 3.2 Gen 2 (10 Gbps)
  • 1 x USB-C 3.2 Gen 2 (10 Gbps)
USB Ports (Power)
  • 4 x USB-A 3.2 Gen 2 (4.5W each)
  • 1 x USB-C 3.2 Gen 2 (15W)
  • 1 x USB-C Multi-function DisplayPort (7.5W)
  • 2 x Thunderbolt 4 (15W each)
  • All deliver power with or without PC
USB Power Delivery
  • 130W (Dell systems)
  • 96W (non-Dell systems)

Software

Operating System Supported
  • Windows 10
  • Windows 11
  • Ubuntu
  • Red Hat Enterprise Linux
  • ChromeOS
  • macOS

Power Description

  • Maximum Power Supply Wattage
    180W

Physical Characteristics


  • Height
    8.07"
  • Width
    3.54"
  • Depth
    1.39"
  • Weight (Approximate)
    1.28lb

Specification overview

Brand: Dell
